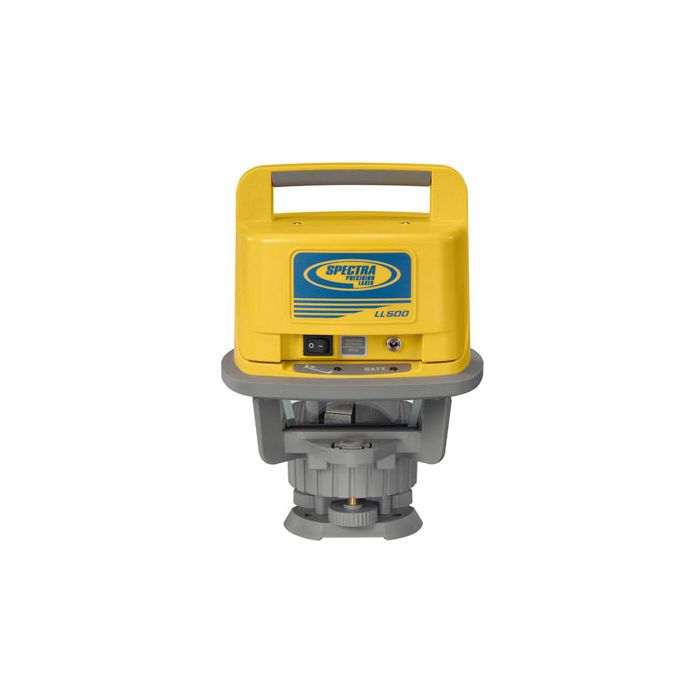

Spectra Precision Laser LL500 - with HL700 Receiver- LL500

The Spectra Precision® Laser LL500 Laser Level with HL700 Receiver and Bracket
        Long-range, highly accurate leveling solution
        The Spectra Precision® Laser LL500 Laser Level is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,600 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site. The rugged LL500 is self-leveling with built-in "out-of-level" shutoff that maintains accuracy over the entire work area and minimizes errors. Visible "spotting" beam determines receiver mounting placement makes it faster to find the on-grade position

        Applications:

          Checking/setting elevations, concrete forms, footings, and foundations for medium-to-large-sized jobs
          Excavating, digging footings, and septic tanks with CR600 receiver
          Sub-base leveling with skid steer loaders and CR600 receiver
          Longer range machine control applications


        Features:

          High accuracy with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes
          Alkaline or rechargeable batteries keep the unit working and minimize downtime due to power loss
          Self-leveling with built-in shut off for increased accuracy over the entire work area and reduced errors
          Comes with choice of HL700 or CR600 receivers so you can choose the best option to suit your application

          Package Includes:

           LL500 Laser Level
           HL700 Laser Receiver w/ rod clamp
          Carrying Case
           Alkaline Batteries
           Operating Instructions

            5 yr warranty

            Specifications:




                  Laser


                  Color
                  Red


                  Wavelength
                  670 nm


                  Classification
                  Class 2


                  Direction
                  Horizontal/Vertical


                  Visibility
                  Highly Visible





                  Range


                  Exterior
                  1,600 ft (500 m)


                  Self Leveling
                  ± 11 arc minutes





                  Battery/Power


                  Battery Life with Rechargeable Battery Pack
                  100/75 Ni-MH/Ni-CD not included


                  Battery Life with Alkaline Batteries
                  175 hours


                  Power Source
                  4 D Cell Alkaline, NiMH, NiCad











Manuals and Brochures
Download The SP LL500  Brochure.
Download The SP LL500  Manual.
